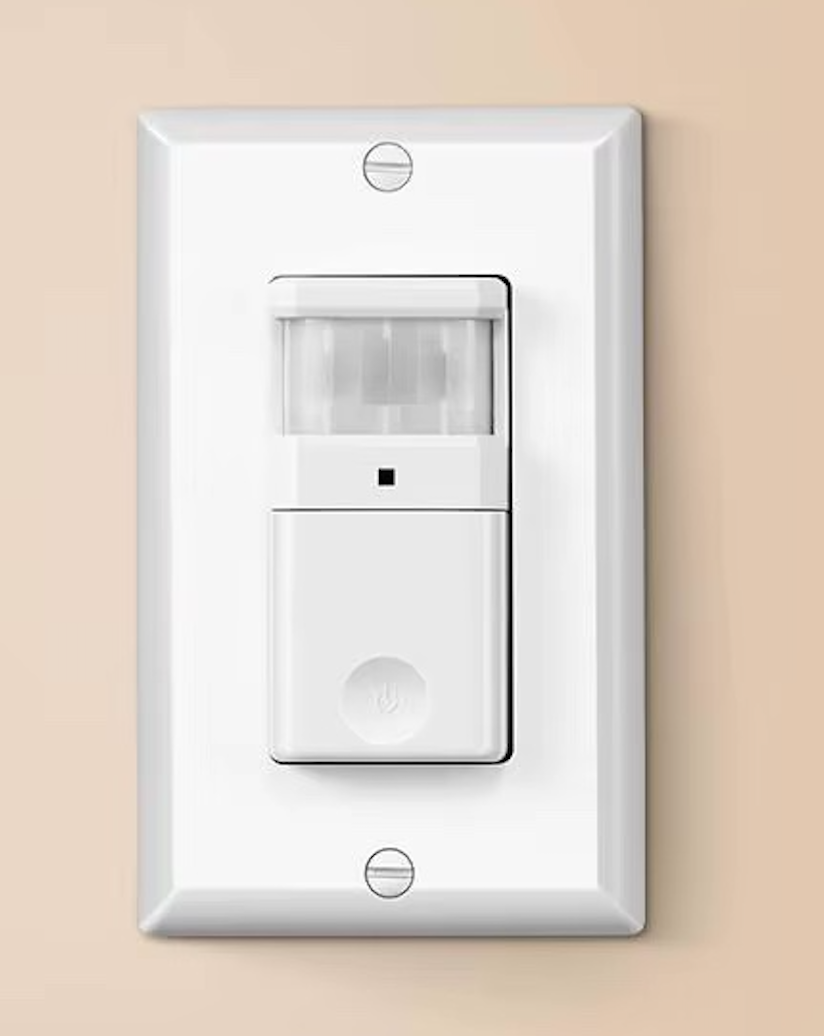

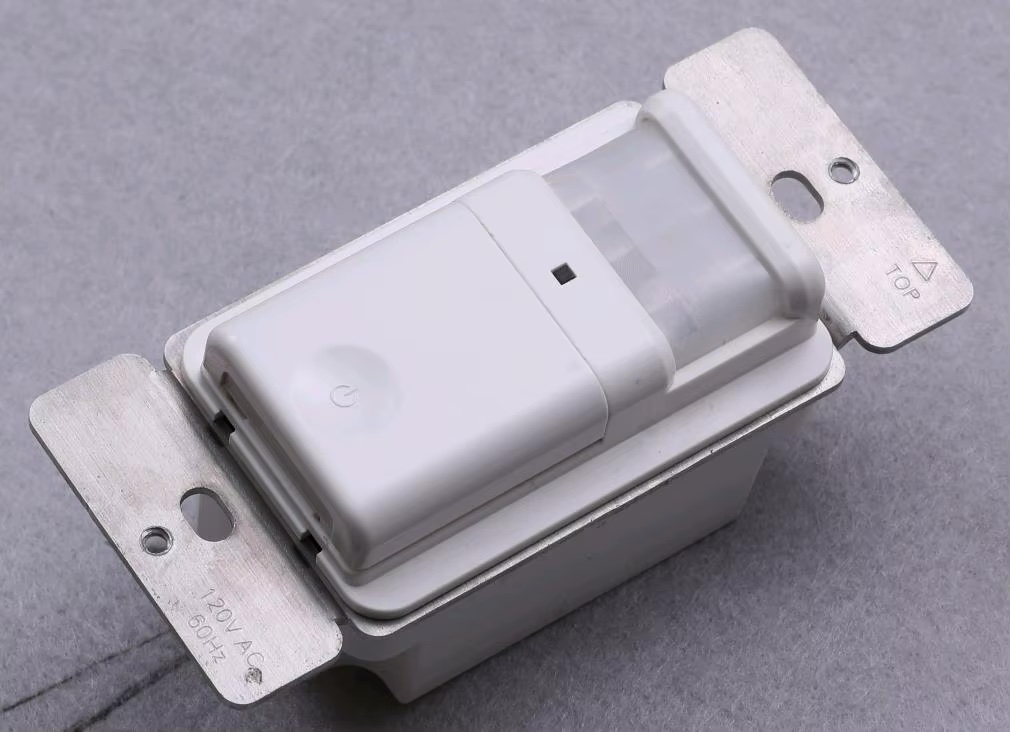

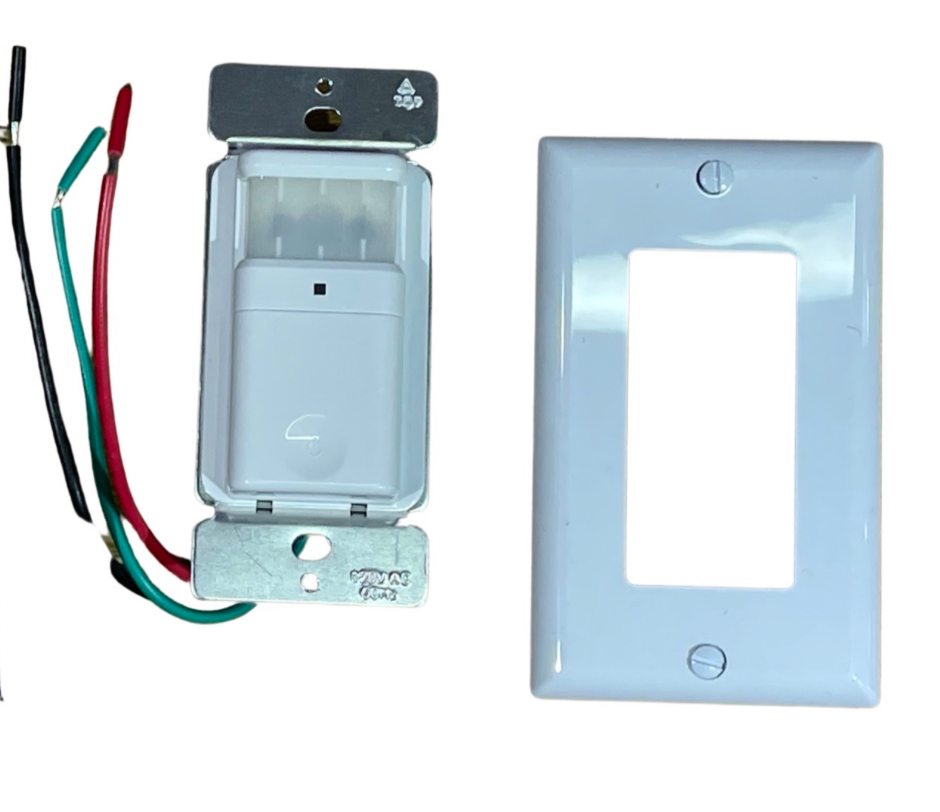

M0613: M.T.C Canada Motion Detector Switch 120VAC With Cover Plate

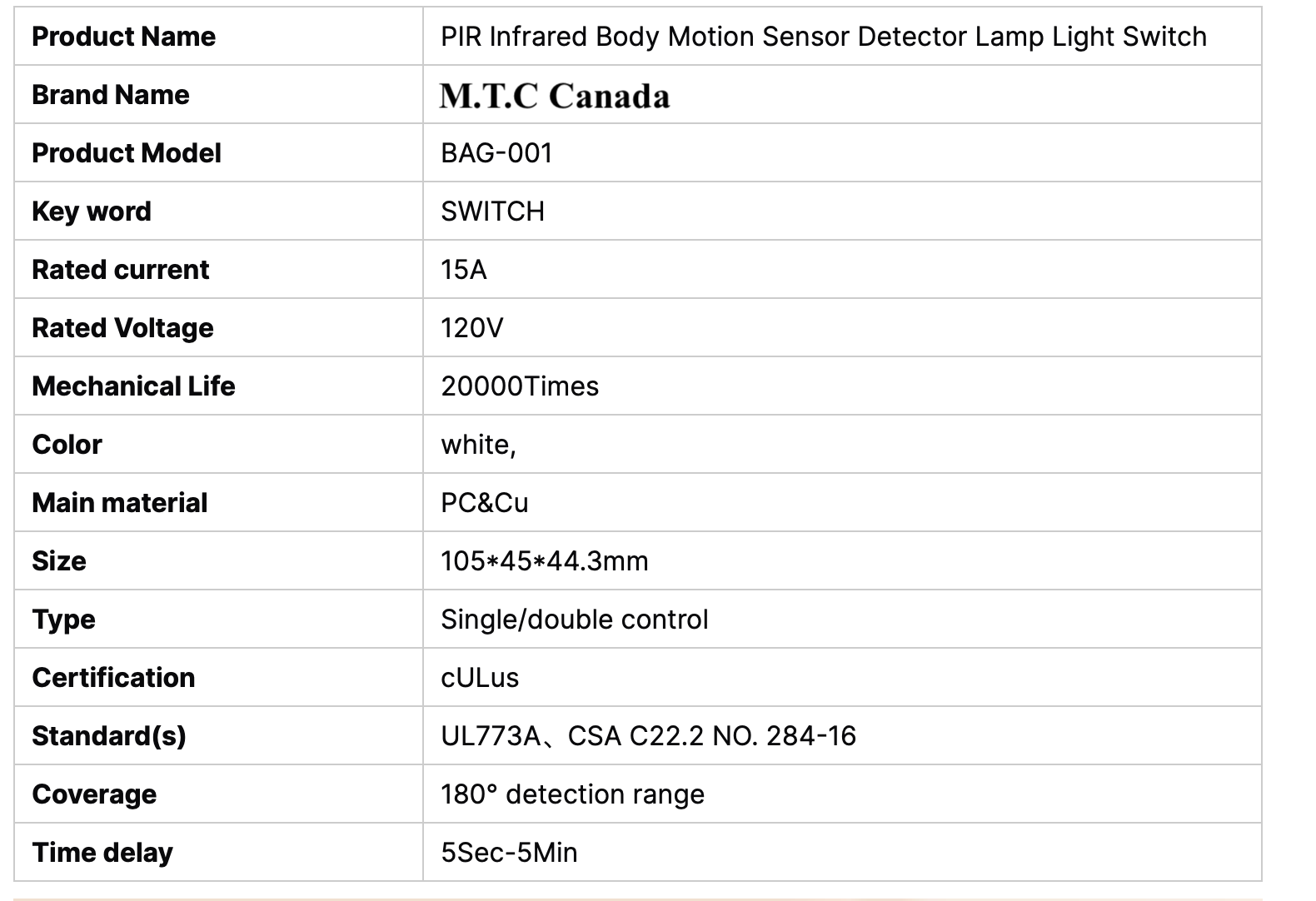

Voltage : 120VAC 60Hz

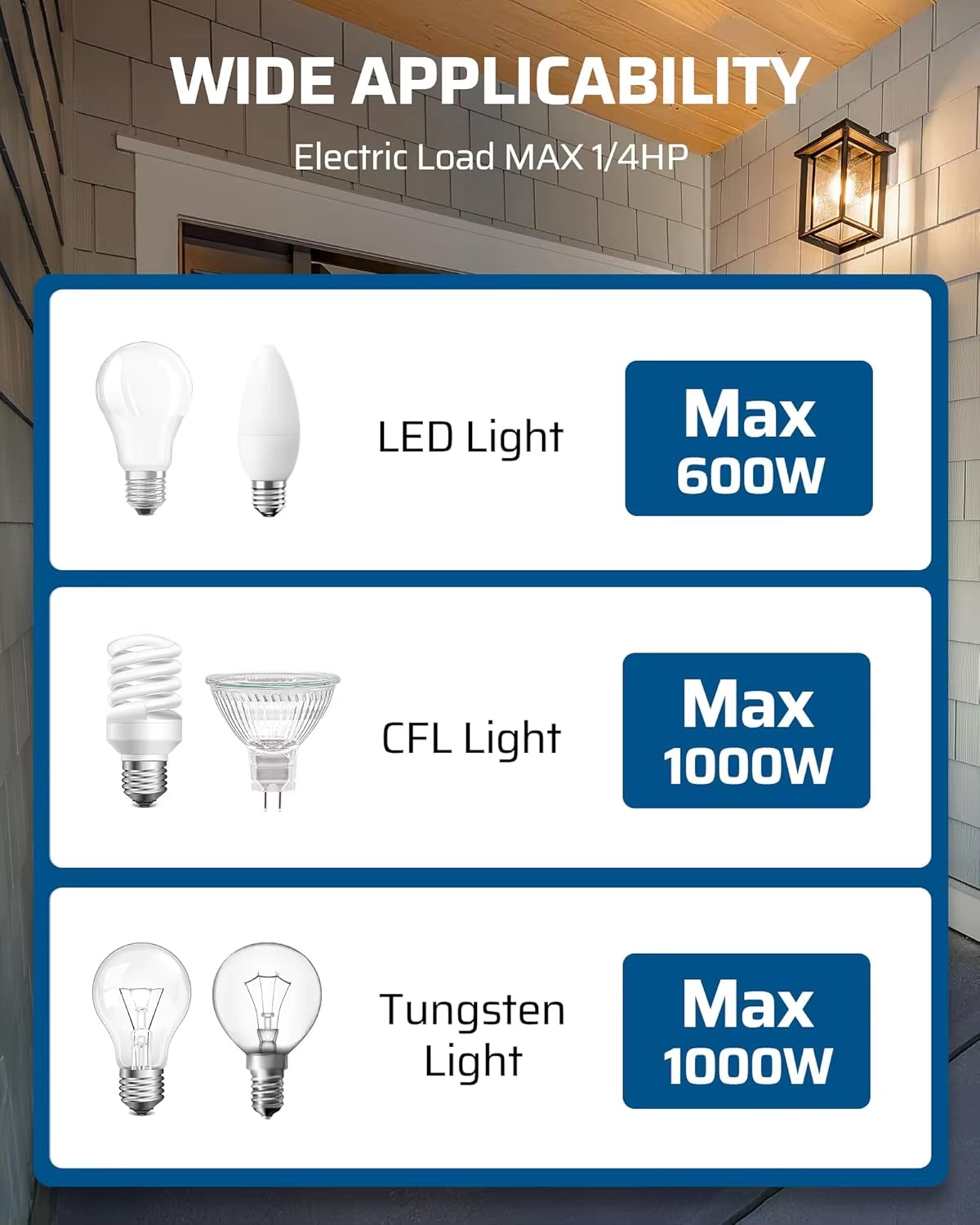

Tungsten : 1000W
LED :5A

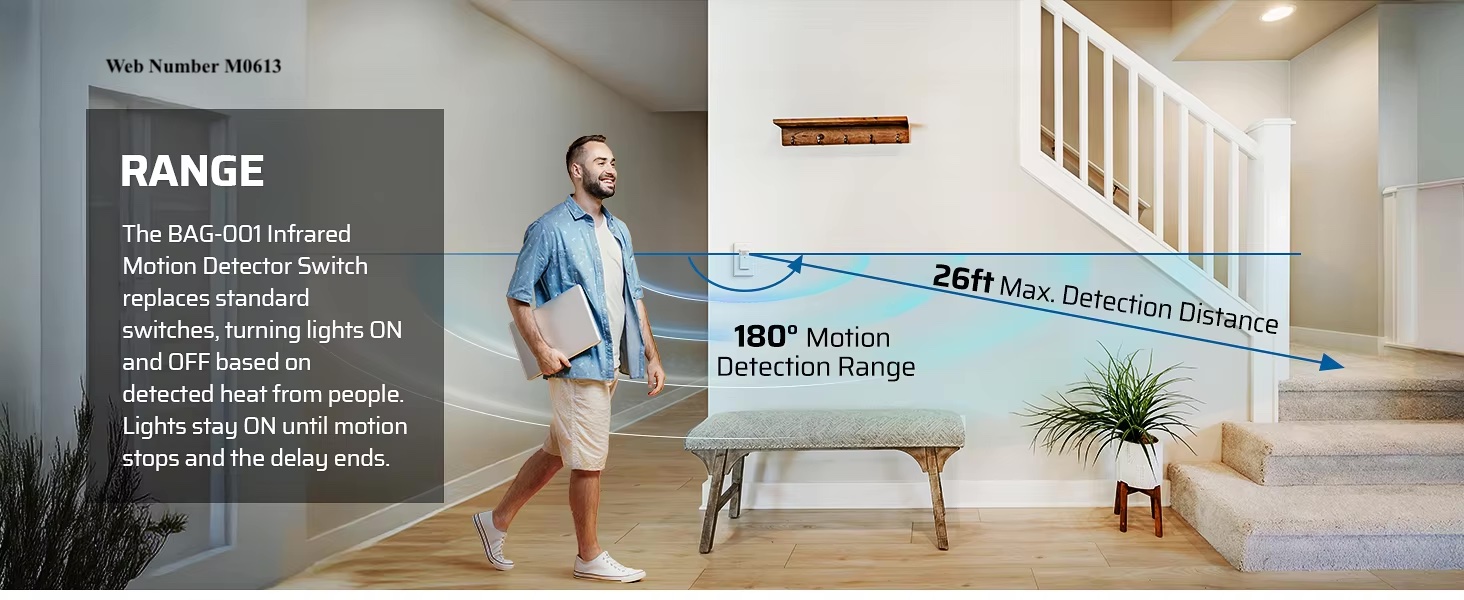

Range MAX 26 Feet 180 Degree Motion Detection Range
RANGE
The BAG-001 Infrared Motion Detector Switch replaces standard
switches, turning lights ON and OFF based on detected heat from people.
Lights stay ON until motion stops and the delay ends.
Motor Load :1/4 HP
Time Delay : 5 Secs To 5 Mins
Size:105*45*44.3mm
Certification ,cULus
Standard (s) UL773A, CSA C22.2 NO. 284-16

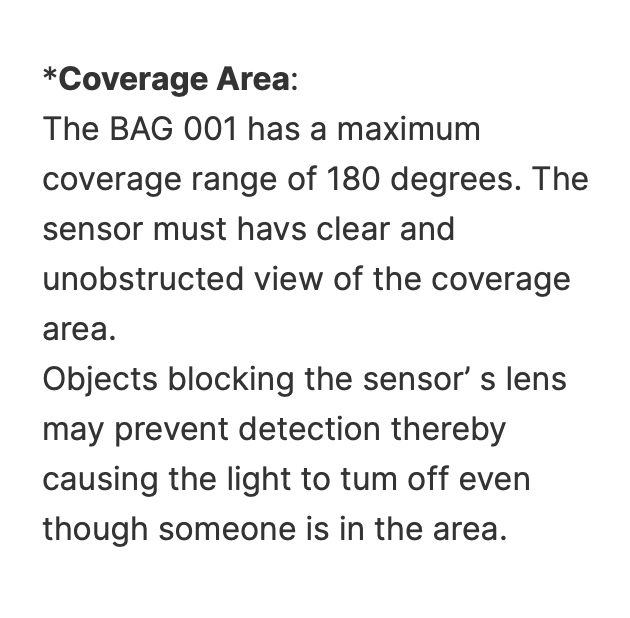

*Coverage Area:
The BAG 001 has a maximum coverage range of 180 degrees. The sensor must havs clear and unobstructed view of the coverage
area.
Objects blocking the sensor's lens may prevent detection thereby causing the light to tum off even though someone is in the area.

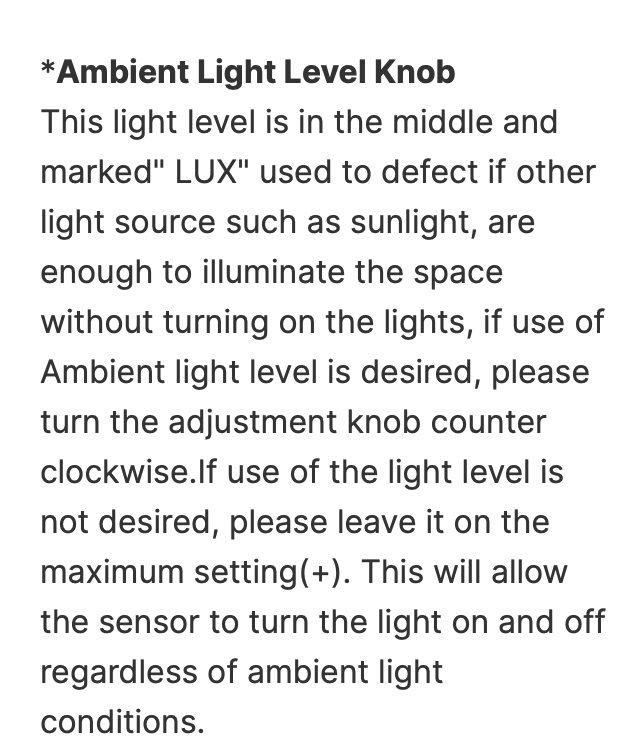

* Ambient Light Level Knob
This light level is in the middle and marked" LUX" used to defect if other light source such as sunlight, are enough to illuminate the space without turning on the lights, if use of Ambient light level is desired, please turn the adjustment knob counter clockwise.If use of the light level is not desired, please leave it on the maximum setting(+). This will allow the sensor to turn the light on and off regardless of ambient light conditions.
Indoor Use Only
